YUCHUNG POWER CATALOGUES FOR CHAICHANG CZ480

The following is our product catalogue. We can provide all the spare parts of CHAICHANG CZ480. For more information, please contact us at email ycpower2019@126.com. Looking forward to your inquiry.

Part Name Specification Applicable Models Drawing Number Feature Code
Oil Seal - Crankshaft Rear 80*100*12mm CC480Q CC4F20 DL80×100×12 B/P
Oil Seal - Crankshaft Front 55*75*12 CC480Q CC4F20 DR55×75×12 B/P
Oil Seal - Crankshaft Front DR55*75*12 CC480Q JB2600-86
Clutch Pressure Plate Spiral CC480Q CZ480Q-331000C 255*6 Holes d8mm
Engine Bracket (Front Right) Right CC480Q CZ475Q-035000J
Engine Bracket (Front Left) CC480Q CZ475Q-034000J h118mm
Starter QDJ13181 CC480Q N485Q-30000G
Starter QD138Y CC480Q CZ480Q-300000
Starter QD13181 CC480Q CZ480Q-300000A
Generator adjustment arm CC480Q CZ475Q-080013-1 L165*d8mm
Generator bracket*gasket CC480Q CZ475Q-120009
Generator bracket CC480Q CZ475Q-120008 zL30/70*d10/14mm
Generator (14V|500W) JFWB15H1-1 CC480Q CZ480QA-293000F
Generator JFWZB175H1-1 CC480Q CZ480QA-293000I
Generator JFWZB175H1-1 CC480Q JFWZB175H1-1
Generator (external) JFWB15H1 14V500W CC480Q CZ480QA-293000C and K common
Generator JFWZB15H1/14V/500W CC480Q CZ480QA-293000K and F common
Generator JFWZB175H1-4 CC480Q CZ480QB-293000B
Drain switch (cylinder) CC480Q CZ475Q-033000 M14mm
Thermostat seat gasket CC480Q CZ475Q-020012 L138*b6mm
Thermostat cover gasket CC480Q CZ475Q-170002 d46/55*b6mm
Thermostat seat CC480Q CZ475Q-170004
Thermostat cover CC480Q N485Q-17001C
Thermostat cover (4 holes) CC480Q CZ475Q-170001-1 d30/58*zL50mm
Thermostat cover CC480Q CZ475Q-170001-1
Water pump (without wheel|original matching with drawing number) CC480Q CC475 CZ475Q-080000-2 14cm from bottom to plate
Water pump (single tank) N480 CC480Q JCZ480W0467
Water pump (single tank) CC475 CC480Q CZ475Q-080000-2 L270*d26/124mm
Oil dipstick CC480Q CZ480Q-112200
Oil pump CC480Q CZ480Q-130000-1 h270mm
Oil pan screw CC480Q CC4F20 CZ480Q-113000
Oil pan gasket (rectangular) CC480Q CC4F20 CZ475Q-110005 L468*b238mm
Oil pan CC480Q CZ480Q-111000F
Injector assembly CC480Q CZ475Q-148000
High-pressure oil pipe (new style) CC480Q CZ480Q-142000-1 M12mm
High-pressure oil pump (4IW2192AQ) 4IW2192AQ CC480Q CZ480QA-141000D-1
High-pressure oil pump BH4Q75R8 4BQ442B-1 Conda 4Q412H CC480Q 4IW2192DQ Modified CZ480QA-141000H
High-pressure oil pump 4IW2192DQ CC480Q CZ480QA-141000H
Oil return pipe CC480Q CZ475Q-143000
Eccentric shaft CC480Q CZ475Q-070001 L460mm
Valve rocker shaft CC480Q CZ475Q-022000 L420mm
Valve tappet CC480Q 4F20 CZ475Q-070004 h45*d14mm
Exhaust valve seat CC480Q CZ475Q-021004
Intake valve seat CC480Q CZ475Q-021004
Intake valve seat CC480Q CZ475Q-021003
Intake valve seat CC480Q CZ475Q-021003
Exhaust valve CC480Q CZ475Q-020003
Intake valve CC480Q CZ475Q-020002
Exhaust branch pipe rear CC480Q CZ475Q-090006E
Exhaust branch pipe CC480Q CZ475Q-090006E d10/40*zL74mm
Gear cover CC480Q CZ475Q-120004
Camshaft tooth (48c) CC480Q CZ475Q-040002 d30/130mm
Gear housing CC480Q CZ475Q-120001 L405*d68/56mm
Flywheel ring gear 115c*d300*b15mm CC480Q CC4F20 CZ480Q-061002
Flywheel CC480Q CZ480Q-061001 d325/315/40mm*b27mm
Flywheel housing with hole CC480Q CZ480Q-030011B
Flywheel housing CC480Q CZ480Q-030011B L470*d370*h84mm
Flywheel housing CC480Q CZ480Q-030011-1
Crankshaft pulley (single groove) CC480Q CZ480Q-060004 d35/170*h88mm
Crankshaft oil baffle CC480Q CZ475Q-06007
Crankshaft thrust washer CC480Q CZ475Q-030013/12 L75*b5mm
Crankshaft bearing +0.00 CC475 CC480Q CZ475Q-030015/14
Crankshaft CC480Q CZ480Q-060003-1
Connecting rod bearing +0.00 CC480Q CZ480Q-050006
Connecting rod CC480Q CZ480Q-052000-1
Connecting rod CC480Q CZ480Q-052000-1
Connecting rod CC480Q CZ480Q-052000-1 d26/54*L200mm
Piston pin CC480Q CZ480Q-050004 d26*L64mm
Piston ring four sets CC480Q CZ480Q-A
Piston ring N480 CC480Q 108018P
Piston ring N480 CC480Q CZ480Q 108018P
Piston ring CC480Q CZ480Q-05001/002/1000A
Piston CC480Q CZ480Q-050005 d26/80*h80mm*round
Cylinder sleeve CC480Q CZ480Q-031017-2 h155*d79/88mm
Four sets CC480Q JCC480W0417
Four sets CC480Q JCZ480QW0417
Four sets of CC480Q JCC480W0417
Respirator (4L68) 4L68 CC480Q CZ480Q-101000 d10/14mm
Cylinder CC480Q CZ480Q-031000-1
Cylinder CC480Q CZ480Q-031000-1
Cylinder CC480Q CZ480Q-031000-1
Cylinder CC480Q CZ480Q-031000-1
Cylinder bed CC480Q JCZ480Q-03003W0467
Cylinder bed CC480Q CZ480Q-030003
Cylinder bed CC480Q E15 Changzhou
Cylinder bed CC480Q E15
Cylinder bed CC480Q CZ480Q-030003 L430*b175*d88mm
Cylinder bed CC480Q CZ480Q-030003
Full vehicle gasket N480 CC480Q I04
Cylinder head CC480Q CZ475Q-021001
Valve cover gasket CC480Q CZ475Q-010004
Valve cover CC480Q CZ475Q-010001

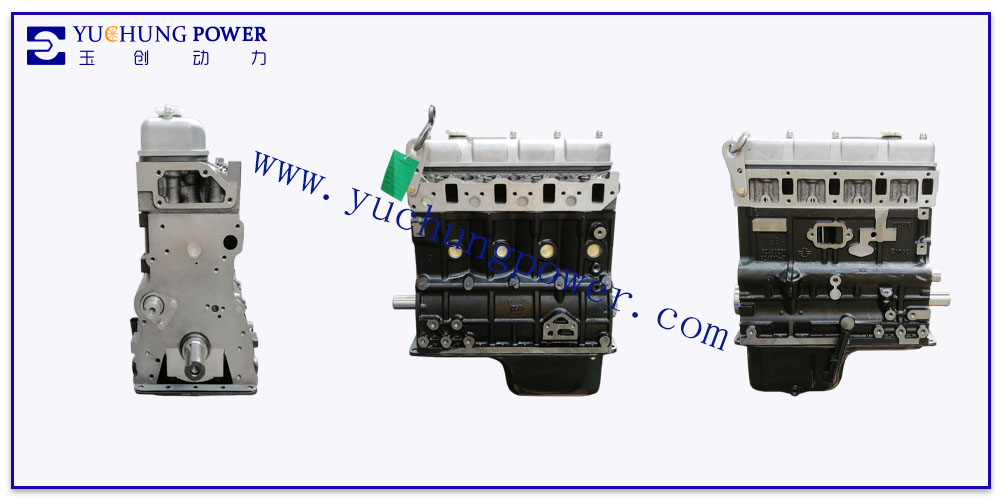

Engine assembly 12V CC480Q 1000010-Q36067S 4B22TCI
Engine assembly 12V CC480Q R110
